Inlet Oil Booster Pumps

SESCO Inlet Oil Booster Pumps enable processor transformer circulation partially filled under full vacuum.

Image is not available
Slider

SESCO SES330 series inlet oil booster pumps are low pressure, low suction head, portable booster pumps designed to assist oil processors when circulating oil through a partially filled transformer being held under full vacuum. The SES330 is available in centrifugal and positive displacement pump versions.

SES330S-2400-C-AL-SE | CENTRIFUGAL INLET BOOSTER PUMP

The SES330S 2400 utilizes a special multistage suction centrifugal pump to supply up to 45 GPM with only 36" of oil suction head when the transformer is under full vacuum. Many transformer processing specifications require hot oil circulation with a limited volume of oil to heat the core prior to the dry out cycle. The SES330S enables the oil processor to circulate hot oil while under full vacuum with only 36" between the inlet of the pump and the oil  level in the transformer. The SES330S is lighter, easier to store, and  easier to position than it's larger heavier positive displacement predecessors.

 All Aluminum Frame Construction - 140 lbs

 Easily Stored - 12" W x 35 ½" D x 16" H

 5 - 45 GPM Adjustable Flow Rate

 15 PSI Maximum Discharge Pressure

 30 - 36" Oil Head Required Under Full Vacuum

Inlet & Discharge Shutoff Valves

Inlet and Discharge Compound Gauges

Discharge Flow Sight

Locally Mounted NEMA 4 Starter Box

 75' Power Cable

 230/460/3/60 - Special Voltages Available

SES330500x500

oPERATING cONDITIONS (MINERAL OIL)

Minimum Ambient Temperature

>0.0 °F / -17.7 °C

Maximum Ambient Temperature

115.0 °F / 46.1 °C

Minimum Oil Temperature

>0.0 °F / -17.7 °C

Maximum Oil Temperature

210 °F / 98.9 °C

Consult Factory for operating conditions with Natural & Synthetic Ester  Fluids

pHYSICAL dATA

Weight

140 lbs / 64kg

Depth

35.5 in / 90.2 cm

Width

12 in / 35 cm

Height

16 in / 46 cm



SPECIFICATIONS

Pump Type

Multistage Centrifugal

Flow Rate

5 - 45 GPM (Restriction dependent)

Pressure Out

15 PSI

Suction Head Required

36” Minimum @ 45 GPM Oil  Under Full Vacuum

(2” Full Port Drain Valve Assumed)

Suction Connection

2” Female Cam

Suction Hose

36” - 3” x 8Ft with 2” M x F Cam Connections Provided with Pump

Discharge Connection

2” Male Cam

Voltage

230/460/3/60 - Special voltages available

Control

Local ON/OFF Switch with Motor Starter and Overload (NEMA 4)

Power Cord

50 ft / 15 m (4 Conductor)



pdf SES330S DATASHEET (1.09 MB)

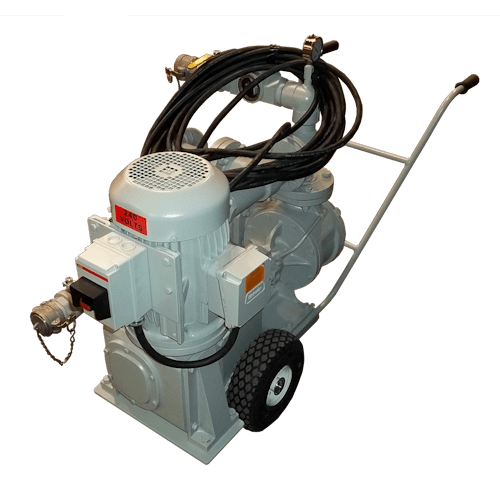

SES330PD-2400 | POSITIVE DISPLACEMENT INLET BOOSTER PUMP

The SES330PD inlet oil booster pumps are low NPSH portable low speed positive displacement booster pumps designed to assist oil processors when circulating through a partially filled transformer being held under full vacuum. This reduced speed gear pump is mounted and balanced on a two wheeled frame for portability and includes a locally mounted motor starter with 50' of power cable. This pump is a custom build and sized for the supported oil processor.

20, 30, & 40 GPM Flow Rates Available

 15 PSI Maximum Discharge Pressure

  30” - 36” Oil Head Required Under Full Vacuum

Inlet & Discharge Shutoff Valves

Inlet and Discharge Compound Gauges

Discharge Flow Sight

Locally Mounted NEMA 4 Starter Box

 50' Power Cable

 230/460/3/60 - Special Voltages Available

Steel Frame Construction -  425 lbs

 25" W x 53" D x 36" H

100 3040 cutout 1000x1000

oPERATING cONDITIONS (MINERAL OIL)

Minimum Ambient Temperature

>0.0 °F / -17.7 °C

Maximum Ambient Temperature

115.0 °F / 46.1 °C

Minimum Oil Temperature

>0.0 °F / -17.7 °C

Maximum Oil Temperature

210 °F / 98.9 °C

CONSULT FACTORY FOR OPERATING CONDITIONS WITH NATURAL & SYNTHETIC ESTER FLUIDS

pHYSICAL dATA

Weight

425 lbs / 193 kg

Depth

53 in / 134.6 cm

Width

25 in / 63.5 cm

Height

36 in / 91.4 cm

SPECIFICATIONS

Pump Type

Positive Displacement Gear

Flow Rate

20 - 45 GPM (Model dependent)

Pressure Out

7.5 - 20  PSI  (Adjustable)

Suction Head Required

36” Minimum @ Rated Flow Under Full Vacuum

(Full Port Drain Valve, SESCO Suction Hose Required)

Inlet Connection

2” Female Cam

Suction Hose

Provided w/ Pump

Discharge Connection

2” Male Cam

Voltage

230/460/3/60 - Special voltages available

Control

Local ON/OFF Switch with Motor Starter and Overload (NEMA 4)

Power Cord

50 ft / 15 m (4 Conductor)



pdf SES330PD DataSheet (1.08 MB)
