SES320-1800 Van Rear
SES320-2400

Insulating Oil Purifier

The SES320 insulating oil conditioning and regeneration system is fully customizable and available in stationary and numerous mobile configurations .

28FT Van Mounted Trailer Version
SES320-1800 Van #2
SES320-2400

Insulating Oil Purifier

The SES320 insulating oil conditioning and regeneration system is fully customizable and available in stationary and numerous mobile configurations .

48FT Van Mounted w/ Genset & Control Area
SES320-2400 SKID
SES320-2400

Insulating Oil Purifier

The SES320 insulating oil conditioning and regeneration system is fully customizable and available in stationary and numerous mobile configurations .

Stationary skid mounted
SES320-2400 BOX TRUCK
SES320-2400

Insulating Oil Purifier

The SES320 insulating oil conditioning and regeneration system is fully customizable and available in stationary and numerous mobile configurations .

Box Truck Mounted
SES320-2400 VAN
SES320-2400

Insulating Oil Purifier

The SES320 insulating oil conditioning and regeneration system is fully customizable and available in stationary and numerous mobile configurations .

Van Mounted w/o Generator

The SESCO SES320 series of insulating oil conditioning and regeneration systems have been manufactured for more than 30 years and can be found in the power generation, transmission, distribution and transformer manufacturing industries world-wide. The SES320 family of oil purifiers are used to condition new and recondition in service  insulating fluids for use in high voltage electrical equipment. The SES320R incorporates an optional adsorbent treatment stage to add oil regeneration capability to the SESE320.

All SES320 models are designed to “single pass” oil processing performance standards to accommodate all transformer maintenance and commissioning requirements. The SES320-2400  has a maximum flow capacity of 2520 gallons per hour. The SES320-2400 is fully customizable and available in a stationary skid and numerous mobile configurations.

SES320-2400 System Treatment Desktop

Treatment Stages

Capabilities

Design Specifications

The SES320 conditioning system uses multiple treatment stages to improves dielectric strength by removing particulate, dissolved water and dissolved gas. The SES320 can also completely regenerate badly degraded mineral oil and remove dissolved sludge during hot oil re-circulation.

The SES320 and accessories provide the tools necessary to efficiently complete all transformer oil processing, maintenance, and dry-out tasks.

The SES320 insulating oil conditioning and regeneration systems are robustly designed to single pass performance specifications to completely satisfy all possible oil processing requirements.

SES320-2400 System Treatment - Mobile

Treatment Stages

The SES320 conditioning system uses multiple treatment stages to improves dielectric strength by removing particulate, dissolved water and dissolved gas. The SES320 can also completely regenerate badly degraded mineral oil and remove dissolved sludge during hot oil re-circulation.

Design Specifications

The SES320 insulating oil conditioning and regeneration systems are robustly designed to single pass performance specifications to completely satisfy all possible oil processing requirements.

Capabilities

The SES320 and accessories provide the tools necessary to efficiently complete all transformer oil processing, maintenance, and dry-out tasks.



SES320 PERFORMANCE - Mobile

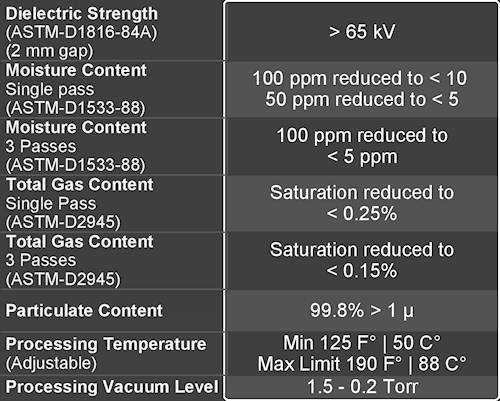

Mineral Oils

The SES320 is designed to worst case single pass performance standards for mineral oil. The dissolved water saturation level is 90-100 ppm at typical ambient temperatures.

Natural Ester Fluids

The flow capacity of the SES320 must be de-rated by 25% when processing Natural Ester Dielectric Fluids. At least two passes are recommended.

Synthetic Ester Fluids

The flow capacity of the SES320 must be de-rated by 25% when processing Synthetic Ester Dielectric Fluids. At least two passes are recommended.

SES320 PERFORMANCE - Desktop

Mineral Oils

Natural Ester Fluids

Synthetic Ester Fluids

The SES320 is designed to worst case single pass performance standards for mineral oil. The dissolved water saturation level is 90-100 ppm at typical ambient temperatures.

The flow capacity of the SES320 must be de-rated by 25% when processing Natural Ester Dielectric Fluids. At least two passes are recommended.

The flow capacity of the SES320 must be de-rated by 25% when processing Synthetic Ester Dielectric Fluids. At least two passes are recommended.



SES320 Features #1 - Desktop
The SES320 system was engineered to provide a fully customizable stationary or mobile solution for insulating oil conditioning, regeneration and transformer dry out.
Image is not available
Fully Customizable

The SES320 system is a fully customizable solution for any stationary or mobile dielectric fluid conditioning, regeneration, and transformer processing challenge. Numerous vacuum package, heating system, instrumentation, mounting and accessory options allow the SES320 system to be configured to meet your exact requirements.

Image is not available
Easy to Operate

At the core of the SES320 system, automatic temperature, level, foam, and re-circulation control provides trouble free simple operation for a single operator. Discharge flow rate can be adjusted by simply restricting any discharge valve or from the panel speed control.

Image is not available
Easy Access

Access to all maintenance related components is provided on both stationary and mobile layouts. The mobile version above uses a unique center isle layout scheme.

Image is not available
Support & Training

Support is a phone call away M-F 8-5 EST. After hours call back support can be reached anytime by email.
(260-422-1671)

SES320 Features #1 - Mobile
The SES320 system was engineered to provide a fully customizable stationary or mobile solution for insulating oil conditioning, regeneration and transformer dry out.
Image is not available
Fully Customizable

The SES320 system is a fully customizable solution for any stationary or mobile dielectric fluid conditioning, regeneration, and transformer processing challenge. Numerous vacuum package, heating system, instrumentation, mounting and accessory options allow the SES320 system to be configured to meet your exact requirements.

Image is not available
Easy to Operate

At the core of the SES320 system, automatic temperature, level, foam, and re-circulation control provides trouble free simple operation for a single operator. Discharge flow rate can be adjusted by simply restricting any discharge valve or from the panel speed control.

Image is not available
Easy Access

Access to all maintenance related components is provided on both stationary and mobile layouts. The mobile version above uses a unique center isle layout scheme.

Image is not available
Support & Training

Support is a phone call away M-F 8-5 EST. After hours call back support can be reached anytime by email.
(260-422-1671)

PREV
NEXT



Instrumentation #1 - Desktop
Instrumentation to make sure the job is done right
Image is not available
Inlet & Outlet Moisture Content & Temperature

Inline moisture (ppm) and temperature (°C/°F) monitors are available to provide local display with HMI charting and logging for processor supply and discharge streams. Calibration factors can be changed on the fly for use with mineral, natural, and synthetic ester insulating fluids.

Image is not available
Full Scale Process & Transformer Vacuum Monitoring

Convectron enhanced pirani vacuum sensors provide provide full scale (760 - 0.01 Torr) digital process pressure display
with HMI charting and logging. Sensors for external vacuum connection and remote transformer monitoring are optional.

Image is not available
Outlet ISO Cleanliness Classification

An optional processed oil contamination sensor monitors the processed oil stream to provide an ISO cleanliness classification for local digital display with HMI charting and logging.

Image is not available
Continuous Outlet Total Dissolved Gas

An optional processed oil Total Gas Content sensor monitors the processed oil stream to provide the oil Total Gas Content for HMI display, charting and logging.

Instrumentation #1 - Desktop
Instrumentation to make sure the job is done right
Image is not available
Inlet & Outlet Moisture Content & Temperature

Inline moisture (ppm) and temperature (°C/°F) monitors are available to provide local display with HMI charting and logging for processor supply and discharge streams. Calibration factors can be changed on the fly for use with mineral, natural, and synthetic ester insulating fluids.

Image is not available
Full Scale Process & Transformer Vacuum Monitoring

Convectron enhanced pirani vacuum sensors provide provide full scale (760 - 0.01 Torr) digital process pressure display
with HMI charting and logging. Sensors for external vacuum connection and remote transformer monitoring are optional.

Image is not available
Outlet ISO Cleanliness Classification

An optional processed oil contamination sensor monitors the processed oil stream to provide an ISO cleanliness classification for local digital display with HMI charting and logging.

Image is not available
Continuous Outlet Total Dissolved Gas

An optional processed oil Total Gas Content sensor monitors the processed oil stream to provide the oil Total Gas Content for HMI display, charting and logging.



SES320 Options #1 - Desktop
Image is not available
Optional Oil Regeneration

The SES320 system includes and additional adsorbent treatment stage to remove polar contaminants, and regenerate badly degraded in service mineral oils.

Image is not available
Vacuum Capacity Options

The SES320 system can be configured for simple dedicated oil processing or more demanding single pass evacuated transformer filling. Five vacuum capacity options guarantee you get what you need.

Image is not available
Vacuum Pump Options

Rotary vane, rotary piston, and dry screw compression roughing pump options are available to meet your specification and price point.

Image is not available
Heating System Options

Multiple electric and fuel oil burner primary heating system options are available to accommodate any climate. Secondary heating system options allow oil temperature to be boosted after the degas stage to provide maximum BTU's to the transformer while avoiding oil degradation.

The SES320 system can be customized to meet your specific insulating oil conditioning or regeneration or transformer processing requirements.
SES320 Options #1 - Mobile
The SES320 system can be customized to meet your specific insulating oil conditioning or regeneration or transformer processing requirements.
Image is not available
Optional Oil Regeneration

The SES320 system includes and additional adsorbent treatment stage to remove polar contaminants, and regenerate badly degraded in service mineral oils.

Image is not available
Vacuum Capacity Options

The SES320 system can be configured for simple dedicated oil processing or more demanding single pass evacuated transformer filling. Five vacuum capacity options guarantee you get what you need.

Image is not available
Vacuum Pump Options

Rotary vane, rotary piston, and dry screw compression roughing pump options are available to meet your specification and price point.

Image is not available
Heating System Options

Multiple electric and fuel oil burner primary heating system options are available to accommodate any climate. Secondary heating system options allow oil temperature to be boosted after the degas stage to provide maximum BTU's to the transformer while avoiding oil degradation.

SES320 Options #2 - Desktop
Image is not available
Control System Options

The SES320 system standard control system incorporates a durable NEMA 4 color touch screen operator interface for control, status, alarm annunciation, and data logging. Web based remote monitoring is optional. A legacy switch and pilot light control interface is also available on request.

Image is not available
Instrumentation Options

In addition to the standard process instrumentation, optional instrumentation to continuously monitor and log dissolved moisture, total gas content, ISO cleanliness classification, evacuation dew point, and transformer vacuum are available.

Image is not available
Hose Storage Options

Hose storage reel options include, live reels, storage only reels, manual rewind, electric rewind all available in in three different length capacities.

Image is not available
Mounting Options

Mounting options for the SES320 system include, stationary skid, deck over axle cargo trailer, box truck, two types of dry vans, and ISO marine shipping containers.

The SES320 system can be customized to meet your specific insulating oil conditioning, regeneration, or transformer processing requirements.
SES320 Options #2 - Mobile
The SES320 system can be customized to meet your specific insulating oil conditioning, regeneration, or transformer processing requirements.
Image is not available
Control System Options

The SES320 system standard control system incorporates a durable NEMA 4 color touch screen operator interface for control, status, alarm annunciation, and data logging. Web based remote monitoring is optional. A legacy switch and pilot light control interface is also available on request.

Image is not available
Instrumentation Options

In addition to the standard process instrumentation, optional instrumentation to continuously monitor and log dissolved moisture, total gas content, ISO cleanliness classification, evacuation dew point, and transformer vacuum are available.

Image is not available
Hose Storage Options

Hose storage reel options include, live reels, storage only reels, manual rewind, electric rewind all available in in three different length capacities.

Image is not available
Mounting Options

Mounting options for the SES320 system include, stationary skid, deck over axle cargo trailer, box truck, two types of dry vans, and ISO marine shipping containers.

PREV
NEXT

Mounting #1 - Mobile
The SES320 system can be provided an a wide variety of stationary and mobile configurations.
Image is not available
Skid Mounted for Stationary Applications

The SES320 system is available in custom skid arrangements for demanding space constrained stationary applications.

Image is not available
Dry Van Semi Trailer

Two types and dry van mounting options are available for self powered and shore powered accessory integrated packages. Van mounted packages range from 28'-48' depending on SES320 system configuration, integrated accessories, and amenities. See the SES954 Dry Van Mounting Configuration work sheet for available options.

Image is not available
Box Truck

Most configurations of the SES320 system can be box truck mounted with room for an ample control area. Chassis axle capacity, frame rails, and wheel base are engineered to accommodate each specific configuration. Chassis from three major manufacturers are available. See the SES953 Box Truck Mounting Configuration work sheet for optional equipment.

Image is not available
Heavy Duty Deck Over Axle Cargo Trailer

The heavy duty Deck Over Cargo (DOC) Trailer accommodates larger SES320 system configurations with plenty of room for to store accessories and protect operators from the elements. See the SES952 Deck Over Cargo Trailer Mounting Configuration work sheet for optional equipment.

Mounting #1 - Desktop
The SES320 system can be provided an a wide variety of stationary and mobile configurations.
Image is not available
Skid Mounted for Stationary Applications

The SES320 system is available in custom skid arrangements for demanding space constrained stationary applications.

Image is not available
Heavy Duty Deck Over Axle Cargo Trailer

The heavy duty Deck Over Cargo (DOC) Trailer accommodates larger SES320 system configurations with plenty of room for to store accessories and protect operators from the elements. See the SES952 Deck Over Cargo Trailer Mounting Configuration work sheet for optional equipment.

Image is not available
Box Truck

Most configurations of the SES320 system can be box truck mounted with room for an ample control area. Chassis axle capacity, frame rails, and wheel base are engineered to accommodate each specific configuration. Chassis from three major manufacturers are available. See the SES953 Box Truck Mounting Configuration work sheet for optional equipment.

Image is not available
Dry Van Semi Trailer

Two types and dry van mounting options are available for self powered and shore powered accessory integrated packages. Van mounted packages range from 28'-48' depending on SES320 system configuration, integrated accessories, and amenities. See the SES954 Dry Van Mounting Configuration work sheet for available options.

PREV
NEXT

Accessories - Mobile
Transformer Dry-Out Accessories
Image is not available
Inlet Oil Booster Pumps

The SES330 oil processor inlet oil booster pumps allow the SES320 system processor to heat and dry the the transformer core by circulating oil through the transformer with the core exposed while under full vacuum. Centrifugal and positive displacement options are available. The popular SES330S centrifugal version is usually in stock.

Image is not available
Vacuum Line Cold Traps

Vacuum line cold traps are used to measure the rate of water extraction during the evacuation stage of the transformer dry out process. Trailer mounted refrigerated and portable liquid N2 vacuum line traps are available. .

Image is not available
Transformer Vacuum Connection Manifolds

SESCO manufactures two styles of vacuum hose connection manifolds for transformer evacuation. Both styles attach to the standard PRV mounting flange. The SES425-E is for evacuation and allows the PRV to be optionally reattached. The SES425-HOS provides evacuation and directional hot oil spray during evacuated exposed core circulation.

Image is not available
Transformer Dry Air Systems

Transformer back fill dry air systems are available for SES320-1800 mobile package integration or as stand alone systems. The systems are available in breathing quality certified and standard dry air quality options. Each type is available in two (-70°) or three (-90°F) stage configurations.

Accessories - Desktop
Image is not available
Inlet Oil Booster Pumps

The SES330 oil processor inlet oil booster pumps allow the SES320 processor to heat and dry the the transformer core by circulating oil through the transformer with the core exposed while under full vacuum. Centrifugal and positive displacement options are available. The popular SES330S centrifugal version is usually in stock.

Vacuum Line Cold Traps

Vacuum line cold traps are used to measure the rate of water extraction during the evacuation stage of the transformer dry out process. Trailer mounted refrigerated and portable liquid N2 vacuum line traps are available.

Image is not available
Image is not available
Transformer Vacuum Connection Manifolds

SESCO manufactures two styles of vacuum hose connection manifolds for transformer evacuation. Both styles attach to the standard PRV mounting flange. The SES425-E is for evacuation and allows the PRV to be optionally reattached. The SES425-HOS provides evacuation and directional hot oil spray during evacuated exposed core circulation.

Transformer Dry Air Systems

Transformer back fill dry air systems are available for SES320-1800 mobile package integration or as stand alone systems. The systems are available in breathing quality certified and standard dry air quality options. Each type is available in two (-70°) or three (-90°F) stage configurations.
