SESCO offers a variety of insulating oil maintenance and lube oil vacuum oil dehydration equipment available for rent. Long-term rentals and emergency service are also available Rental services include optional startup and training. Partial rental fee credit may be applied toward new equipment purchase.
Contact SESCO with your transformer oil service equipment needs and let us help you determine what rental options will serve you best.
- SES320-1800 - Insulating
Oil
Processor - Liquid
Nitrogen
Cold Traps - Processor
Inlet Oil
Booster Pumps - Fullers
Earth
Systems - Lube Oil
Dehydrators

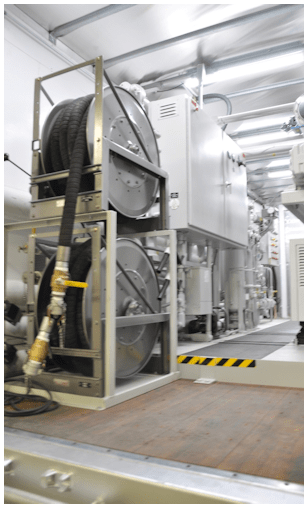

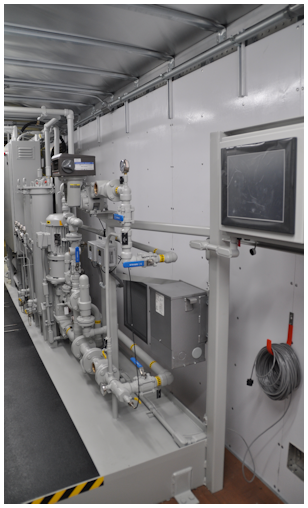

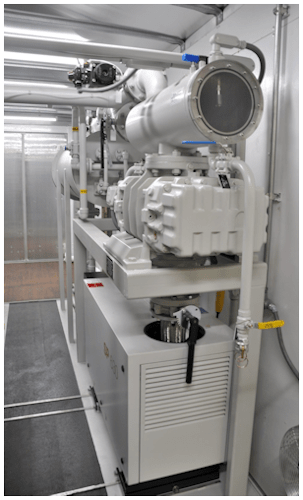

Insulating Oil Processor
INSULATING OIL PROCESSOR
VAN MOUNTED
SES320-1800-480-160KW-32KW
ADJ CIRCULATION RATE
ADJ DISCHARGE FLOW RATE
100 PPM REDUCED TO
HOSES PROVIDED
(9) OIL HOSE 2” X 25 FT/MXF CAM (LOOSE)
(4) VACUUM HOSE 4” X 20 FT/MXF CAM
(1) VACUUM PUMP EXHAUST TUBE
POWER CABLE PROVIDED
(1) 50’ (4) CONDUCTOR CABLE
POWER REQUIRED – 280A @ 480V3/60HZ
CONNECTIONS
(2) 2" F CAM OIL INLET
(2) 2” M CAM OIL OUTLET
(2) 4” M CAM EXTERNAL VACUUM
(Delivery Available)
DRY VAN MOUNTED
28FT LONG, 102’ WIDE, 13’-6’ TALL
STD FIFTH WHEEL KING PIN
EST WT 19,025 LBS
(1) LOCAL FLOW RATE METER
(1) LOCAL POSITIVE DISPLACEMENT FLOW TOTALING METER
(1) REMOTE TRANSFORMER VACUUM GAUGE
(1) INLET MOISTURE MONITOR
(1) OUTLET MOISTURE MONITOR
Insulating Oil Processor
INSULATING OIL PROCESSOR
VAN MOUNTED
SES320-1800-480-160KW-32KW
ADJ CIRCULATION RATE
ADJ DISCHARGE FLOW RATE
100 PPM REDUCED TO
HOSES PROVIDED
(9) OIL HOSE 2” X 25 FT/MXF CAM (LOOSE)
(4) VACUUM HOSE 4” X 20 FT/MXF CAM
(1) VACUUM PUMP EXHAUST TUBE
POWER CABLE PROVIDED
(1) 50’ (4) CONDUCTOR CABLE
POWER REQUIRED – 280A @ 480V3/60HZ
CONNECTIONS
(2) 2" F CAM OIL INLET
(2) 2” M CAM OIL OUTLET
(2) 4” M CAM EXTERNAL VACUUM
(Delivery Available)
DRY VAN MOUNTED
28FT LONG, 102’ WIDE, 13’-6’ TALL
STD FIFTH WHEEL KING PIN
EST WT 19,025 LBS
(1) LOCAL FLOW RATE METER
(1) LOCAL POSITIVE DISPLACEMENT FLOW TOTALING METER
(1) REMOTE TRANSFORMER VACUUM GAUGE
(1) INLET MOISTURE MONITOR
(1) OUTLET MOISTURE MONITOR
(1) TRAP THIMBLE PROVIDED
7.8 LITER LIQUID NITROGEN CAPACITY
385 IN² TRAP SURFACE AREA
-195°C SURFACE TEMPERATURE
2.6L AVERAGE TRAPPING CAPACITY
INLET AND OUTLET ISOLATION VALVES
PORTABLE 2 WHEEL DESIGN
TRAP BY-PASS PIPING PROVIDED
S.S. SHELL AND THIMBLE
3" or 4" CAM VACUUM CONNECTIONS
5" CONTURED THIMBLE ICE SCRAPER
(1) 72” CRYOGENIC N2 DISPENSING
HOSE W/ DIFFUSER
(1) PAIR LARGE ELBOW LENGTH CRYOGENIC GLOVES
(1) FULL FACE SHIELD
(1) LONG SLEEVE HEAVY DUTY LAB COAT
(1) TRAP THIMBLE PROVIDED
7.8 LITER LIQUID NITROGEN CAPACITY
385 IN² TRAP SURFACE AREA
-195°C SURFACE TEMPERATURE
2.6L AVERAGE TRAPPING CAPACITY
INLET AND OUTLET ISOLATION VALVES
PORTABLE 2 WHEEL DESIGN
TRAP BY-PASS PIPING PROVIDED
S.S. SHELL AND THIMBLE
3" or 4" CAM VACUUM CONNECTIONS
5" CONTURED THIMBLE ICE SCRAPER
(1) 72” CRYOGENIC N2 DISPENSING
HOSE W/ DIFFUSER
(1) PAIR LARGE ELBOW LENGTH CRYOGENIC GLOVES
(1) FULL FACE SHIELD
(1) LONG SLEEVE HEAVY DUTY LAB COAT
Permits Oil Circulation Through a Partially Filled Transformer Under Full Vacuum For Core Heat Up

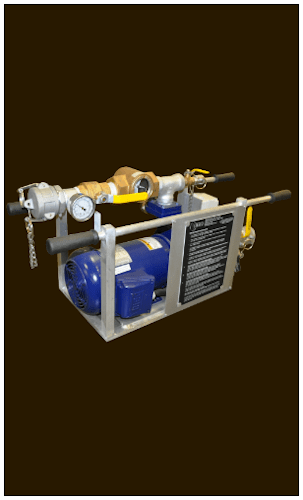

LOW NPSH OIL INLET BOOSTER PUMP
TYPE: MULTISTAGE CENTRIFUGAL
FLOW OUT: 10- 45 GPM (RESTRICTION DEPENDENT)
PRESSURE OUT: 15 PSI
SUCTION HEAD: REQUIRED 36” MINIMUM @ 40 GPM OIL
(REQUIRES SESCO SUCTION HOSE)
INLET CONNECTION: 2” FEMALE CAM
SESCO SUCTION HOSE: REQUIRED FOR FLOW RATES OVER 20 GPM
DISCHARGE CONNECTION: 2” MALE CAM
VOLTAGE: 480V/240V/3PH/60HZ
CONTROL: LOCAL MOTOR STARTER w/ OVERLOAD (NEMA 4X)
POWER CORD: 50 FT / 15 M (4 CONDUCTOR)
WEIGHT: 135 LBS. / 61 KG
LENGTH: 38 IN / 96 CM
WIDTH: 14 IN / 35 CM
HEIGHT: 18 IN / 46 CM
Permits Oil Circulation Through a Partially Filled Transformer Under Full Vacuum For Core Heat Up
LOW NPSH OIL INLET BOOSTER PUMP
TYPE: MULTISTAGE CENTRIFUGAL
FLOW OUT: 10- 45 GPM (RESTRICTION DEPENDENT)
PRESSURE OUT: 15 PSI
SUCTION HEAD: REQUIRED 36” MINIMUM @ 40 GPM OIL
(REQUIRES SESCO SUCTION HOSE)
INLET CONNECTION: 2” FEMALE CAM
SESCO SUCTION HOSE: REQUIRED FOR FLOW RATES OVER 20 GPM
DISCHARGE CONNECTION: 2” MALE CAM
VOLTAGE: 480V/240V/3PH/60HZ
CONTROL: LOCAL MOTOR STARTER w/ OVERLOAD (NEMA 4X)
POWER CORD: 50 FT / 15 M (4 CONDUCTOR)
WEIGHT: 135 LBS. / 61 KG
LENGTH: 38 IN / 96 CM
WIDTH: 14 IN / 35 CM
HEIGHT: 18 IN / 46 CM

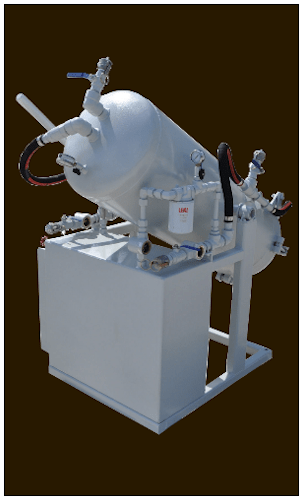

SINGLE TANK FULLERS EARTH TREATMENT SYS
250 LBS TANK MEDIA CAPACITY
USE FULLERS EARTH OR ACTIVATED ALUMINA
5-20 GPM FLOW RATE (VISCOSITY DEPENDANT)
5 MICRON DISCHARGE FILTER RECOMMENDED
MAX TANK PRESSURE 75 PSI
30 GAL BLOWDOWN TANK PROVIDED
BOTTOM SPENT MEDIA DUMP W/ MANUAL TILT
VACUUM SOURCE REQD FOR FILL (SHOP VAC)
>20 CFM AIR COMPRESSOR REQD FOR RESIDUAL OIL BLOWDOWN.
POWER REQUIRED- NONE FOR EARTH TANK
HOSES PROVIDED
(3) OIL HOSE 1” X 20 FT/MXF CAM W/ VALVE
(1) EARTH FILL HOSE 1” X 10 FT/MXF CAM
SKID MOUNTED & CRATED
40” LONG, 36”’ WIDE, 82”’ TALL
EST WT 900 LBS
(1) 1" F CAM OIL INLET
(1) 1” M CAM OIL OUTLET
(1) 1” F CAM BLOW DOWN RETURN
(1) 1” FILL VACUUM CONNECTION
(1) ½” BLOW DOWN AIR CONNECTION
SINGLE TANK FULLERS EARTH TREATMENT SYS
250 LBS TANK MEDIA CAPACITY
USE FULLERS EARTH OR ACTIVATED ALUMINA
5-20 GPM FLOW RATE (VISCOSITY DEPENDANT)
5 MICRON DISCHARGE FILTER RECOMMENDED
MAX TANK PRESSURE 75 PSI
30 GAL BLOWDOWN TANK PROVIDED
BOTTOM SPENT MEDIA DUMP W/ MANUAL TILT
VACUUM SOURCE REQD FOR FILL (SHOP VAC)
>20 CFM AIR COMPRESSOR REQD FOR RESIDUAL OIL BLOWDOWN.
POWER REQUIRED- NONE FOR EARTH TANK
HOSES PROVIDED
(3) OIL HOSE 1” X 20 FT/MXF CAM W/ VALVE
(1) EARTH FILL HOSE 1” X 10 FT/MXF CAM
SKID MOUNTED & CRATED
40” LONG, 36”’ WIDE, 82”’ TALL
EST WT 900 LBS
(1) 1" F CAM OIL INLET
(1) 1” M CAM OIL OUTLET
(1) 1” F CAM BLOW DOWN RETURN
(1) 1” FILL VACUUM CONNECTION
(1) ½” BLOW DOWN AIR CONNECTION
0-20 GPM FLOW RATE
64 KW HEATING CAPACITY
480V/3PH/60HZ
5 MICRON PREFILTER
½ MICRON OPTIONAL POLISHING FILTER
5000 PPM WATER REMOVAL / PASS
100 A SERVICE REQ’D FOR FULL HEATING CAPACITY
CLEAN COOLING WATER REQUIRED
5 GPM @ 15 PSI MINIMUM
MAX TEMP 80°F
½ GPM EXPELLED TO GRAVITY FLOOR DRAIN
0-20 GPM FLOW RATE
64 KW HEATING CAPACITY
480V/3PH/60HZ
5 MICRON PREFILTER
½ MICRON OPTIONAL POLISHING FILTER
5000 PPM WATER REMOVAL / PASS
100 A SERVICE REQ’D FOR FULL HEATING CAPACITY
CLEAN COOLING WATER REQUIRED
5 GPM @ 15 PSI MINIMUM
MAX TEMP 80°F
½ GPM EXPELLED TO GRAVITY FLOOR DRAIN
